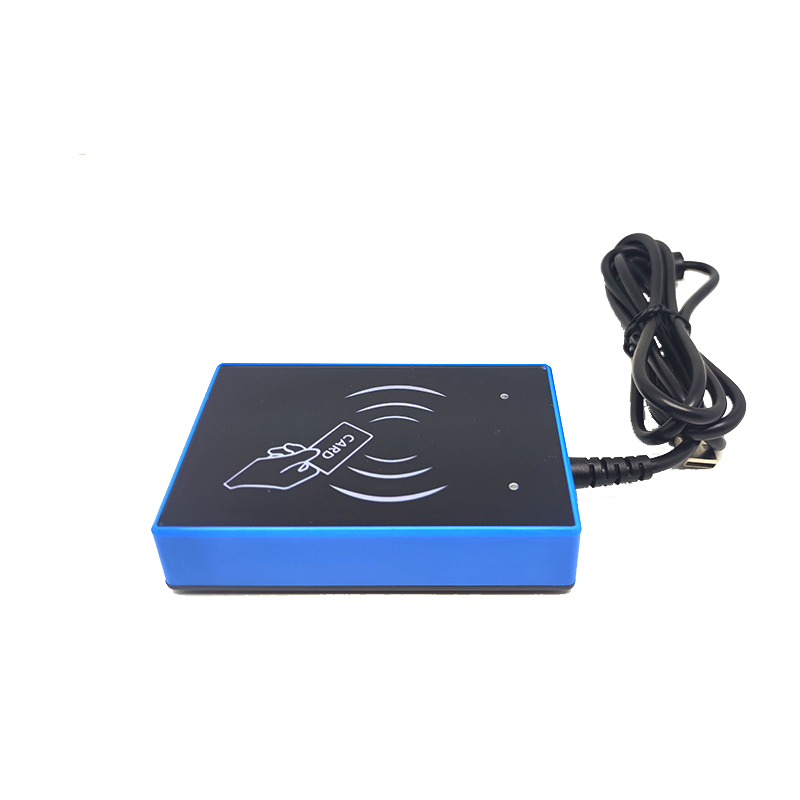

CL-XR982A

UHF DESKTOP READER --- It is a compact desktop reader writer with USB interface.

Full support for electronic tags conforming to ISO18000-6B/6C, EPC CLASS1 G2 standards.
Working frequency 902～928MHz (support customized for different countries or regions).
Work with broad spectrum frequency hopping (FHSS) or fixed frequency transmitting mode.
Output power up to 26dBm (adjustable).
Support USB Virtual Serial Port and HID mode.
Provide DEMO and SDK for development.
Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.

ITEM	Parameters
Frequency	840~960MHz at option; Fixed or FHSS
Protocol	ISO 18000-6C (EPC GEN2);
Communication	Virtual Serial Port and HID mode
Antenna	Built-in 2dBi circular polarized antenna
Read range	Max 150cm (related to the card or the environment)
Working voltage	DC+5V(±4%)
Power supply	USB
Size/Weight	1208025mm; 300g
Working temperature	Working:-10℃ ~ +50℃, Storage:-20℃ ~ +80℃
Operating System	Windows, Android, Linux

RFID Card Registration

Tag Programming

Asset Enrollment

Library Management

Employee Card Management
