NEW
RFID

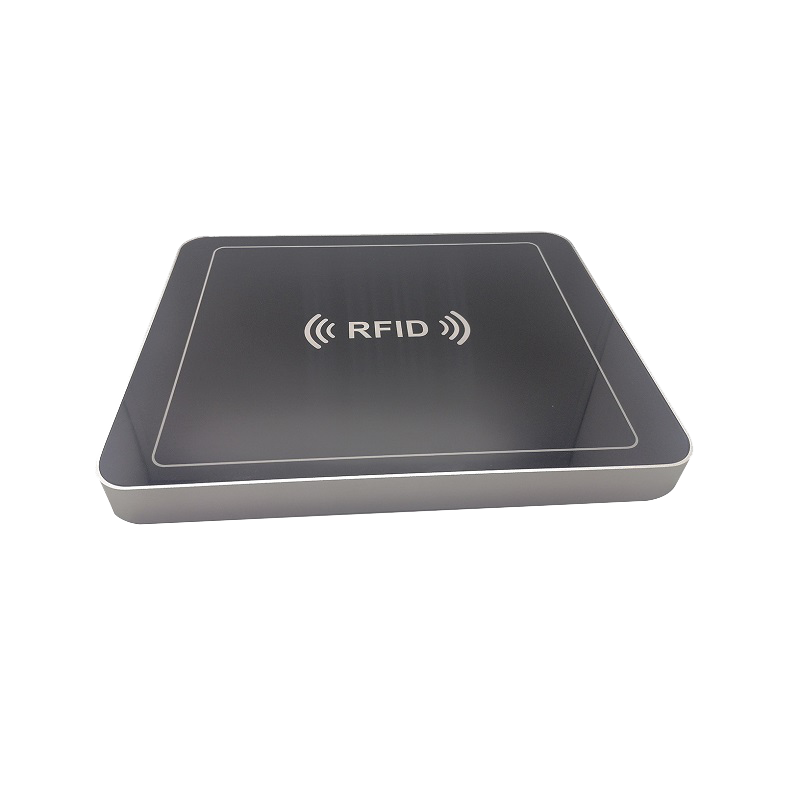

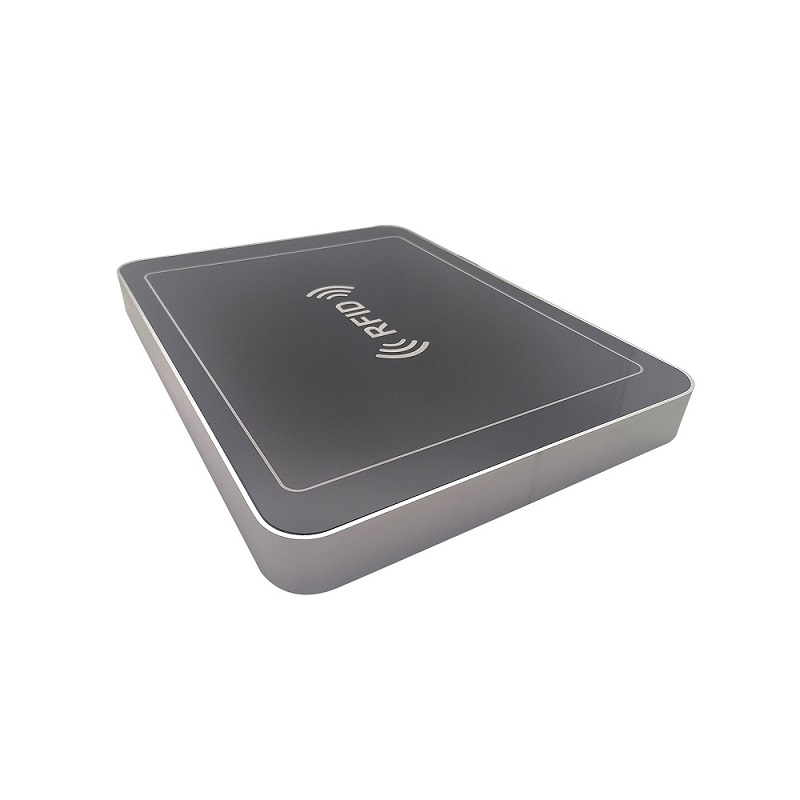

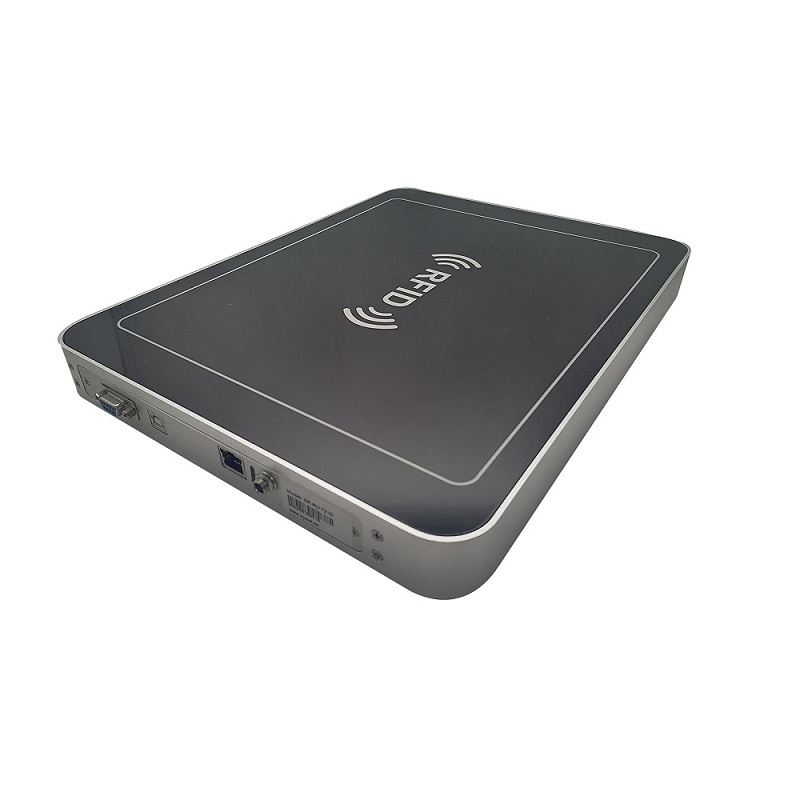

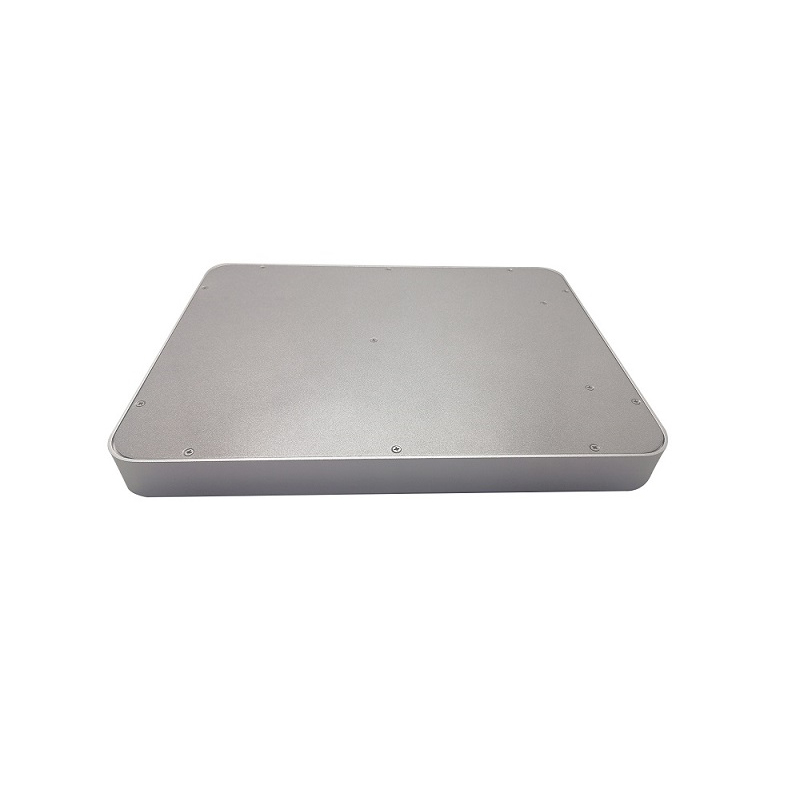

UHF Desktop Reader
CL-XR582W
UHF DESKTOP READER --- It is a large size desktop reader writer with mulpiple interface.
- RF output power up to 30dBm
- Support command, polling and trigger mode
- Provide DEMO and SDK for development
- Support EU 840~868MHz, US 902~928MHz working frequency (or Customized)
- Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.
- FHSS or Fix Frequency transmission.
- RF output power up to 30dBm (1dbm step adjustable).
- Support command, polling and trigger mode.
- Provide DEMO and SDK for development.
- Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.
| RFID Parameters | |
| Protocol | EPC Global UHF Class 1 Gen 2 / ISO 18000-6C |
| Frequency | 840~960MHz at option; Fixed or FHSS |
| RF output power | 30dBm±1dB(MAX) |
| Step power | 1dBm |
| Signal width | ＜250KHz |
| Communication Parameters | |

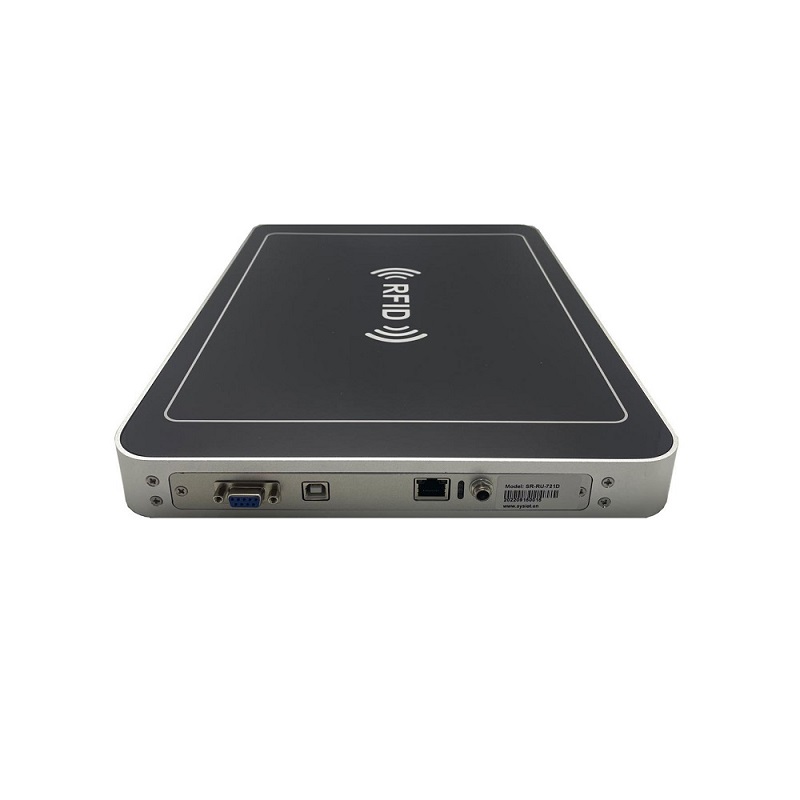

| Interface | Support USB, RS232, RJ45 at option |
| Power Parameters | |
| Operating Voltage | DC 12.0V (9V~24V) |
| Operating Current | ≤600mA / DC 12V |
| Standby Current | ≤100mA / DC 12V |
| Working Environment | |
| Operating Temperature | -20~+55℃ |
| Operating Humidity | <95%RH (+25℃) Non-condensing |
| Physical Parameters | |
| Dimension | 37*28*5cm |
| Weight | 1.7kg |
| Packing | 49*31*7cm, 2.5Kg |
RFID Card Registration
Tag Programming
Asset Enrollment
Library Management
Employee Card Management
