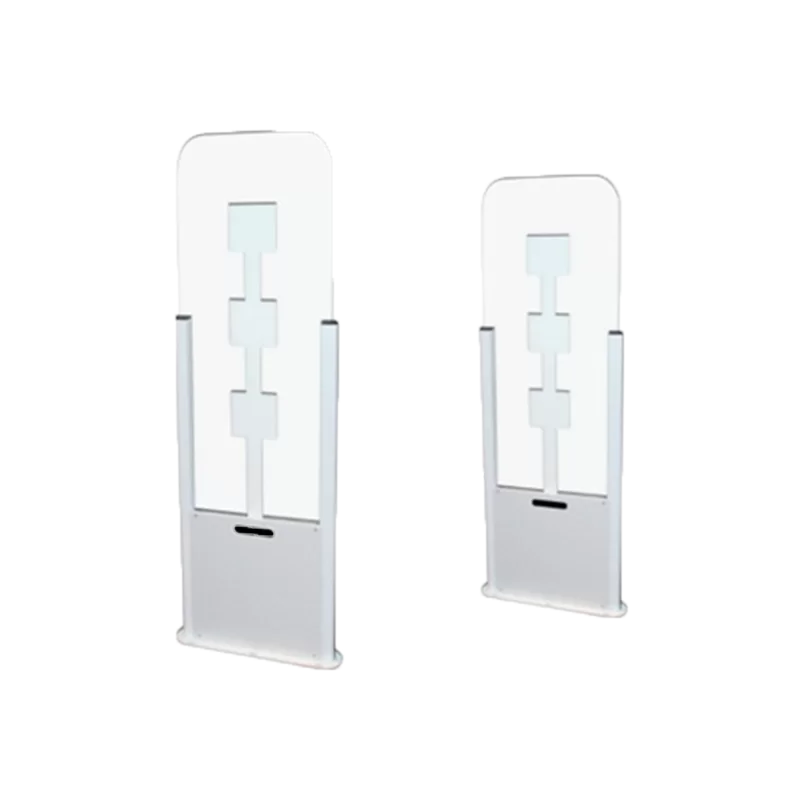

CL-KT192A

UHF HIGH PERFORMANCE GATE --- It is a high-performance EPC C1G2(18000-6C) protocol UHF tag gate device.

Self-intellectual property
840~960MHz frequency band (frequency customization optional).
Support ISO18000-6C (EPC C1G2) protocol tag
FHSS or Fix Frequency transmission
RF output power up to 30dbm (adjustable)
Built-in 2 lines infrared motion sensor with intelligent movement direction determination and personnel counting display
Support Inventory and EAS mode
EAS mode supports true EAS or EPC emulated EAS
Advanced anti-collision algorithm, high identification rate and optional RSSI
Low power dissipation design with excellent safety and reliability
Support buzzer and alarm
Support RS232 and TCP/IP interface
Provide DLL and Demonstration Software Source code to facilitate further development
Effective infrared sensor detection distance up to 1.5m

ITEM	Dimensions
VALUE	1530 x 640/580 x 48/20 (HxWxT) (mm)

Library Security

Asset Protection

Retail Anti-Theft

Document Tracking

Equipment Monitoring
