CL-KR293H

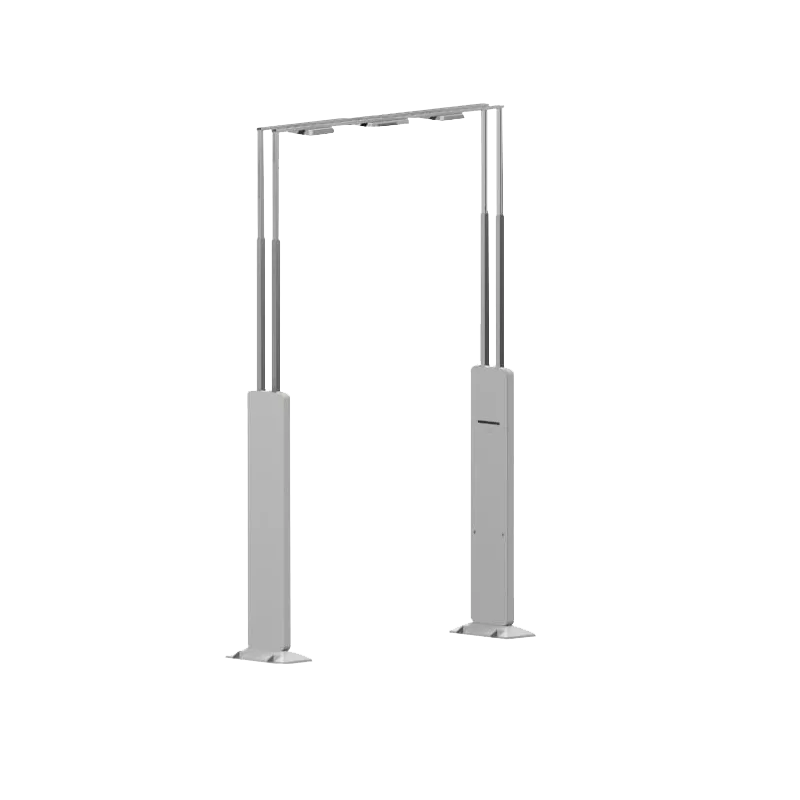

UHF ACCESS GATE --- It is gantry UHF RFID access gate reader with width adjustable.

Automatic data collection: Unmanned, automatic collection of multi-tag information, long-distance, dynamic reading of passing items, vehicles, and people. It can support 8km/h and the simultaneous reading of 150 tags. (There will be different effects depending on the tag type/reader and fixed position).
Determination of entry and exit directions: Using two-way infrared sensing control, it can automatically determine the entry and exit directions of items/vehicles/personnel, making it more intelligent and efficient.
The system operates independently: The passage door system can operate independently and is not affected by business system failures or network disconnections.
Multiple alarm forms: Supports sound and light alarm reminder methods to meet on-site requirements in noisy working environments.
Easy to integrate and connect: It can achieve seamless connection with AGV, WMS, electronic signage and other equipment and systems.
Industrial quality design: The steel and aluminum body effectively shields external interference sources. Industrial-grade hardware selection ensures stable operation. High-quality products highlight the good image of the company.

Main Function
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency	920-928MHz(FCC) 865-868MHz(ETSI)
RF Output Power	33dBm±1dB(MAX)
OS	Optional Android, Windows
Screen	Optional LCD
Operating Mode	Support server/client mode to realize multi-channel control function
Power Supply	AC220V±10% 47～63 Hz
Power Consumption	45W
Interface	RS-232(DB9)/RJ45/wifi/4G
Indicator	Light, buzzer
Infrared	optional
Recommended Width	1.5~2.2m (up to 2.5m)
Physical Parameter
Dimension	380mm(L)×68mm(W)*2000mm(H) (each piece)
Weight	70KG (two pieces)
Working Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Ambient Humidity	5%~95%RH, no condensation
Appearance	Default color: Off-white + silver gray
Main Material	Panel engineering plastic, body material aluminum alloy

Library Security

Asset Protection

Retail Anti-Theft

Document Tracking

Equipment Monitoring
